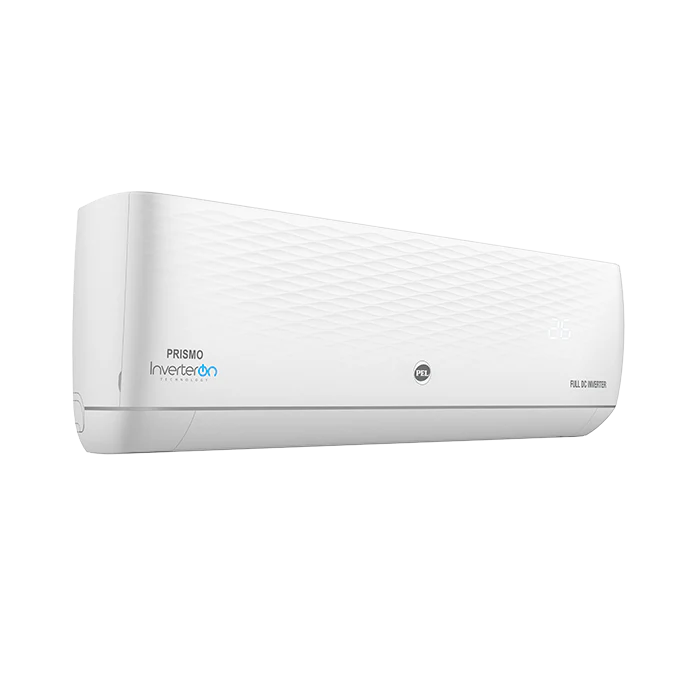

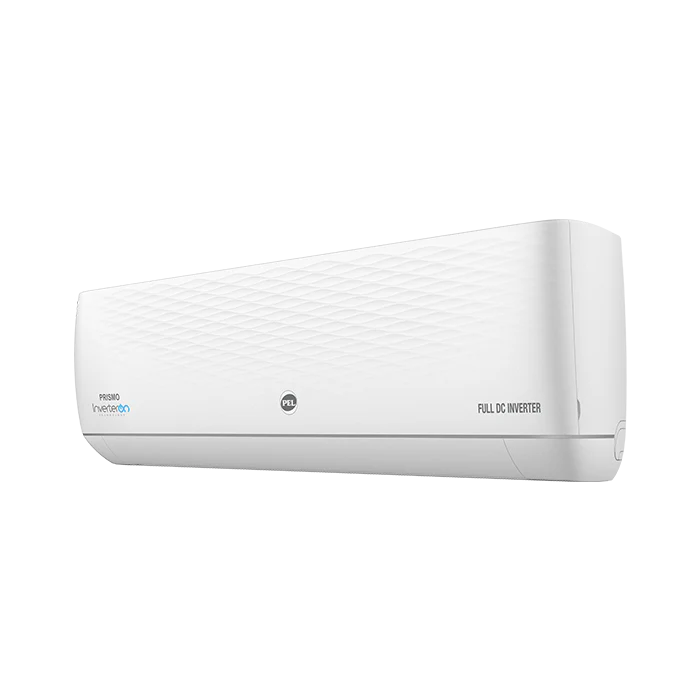

PEL InverterOn Prismo T3 (H&C) Air Conditioner
| SPECIFICATION | 18K Prismo |
|---|---|
| Rated Capacity - Cooling | 5100 (1300-5700) W |
| Rated Capacity - Heating | 5200 (1300-5900) W |
| Rated Running Current - Cooling | 8.2 (2.3-10.5) A |
| Rated Running Current - Heating | 7.3 (2.7-9) A |
| Maximum Current | 12 A |
| Rated Power Cooling | 1660 (290-2300) W |
| Rated Power Heating |
1530 (250-1800) W |
| Maximum Input Power | 2400 W |
| Energy Efficiency Ratio (EER) | 3.07 |
| Power supply source | 220-240V~/50Hz |
| Refrigerant | R32/800 Gas |
| Air Flow Volume | 880 m3/h |
| Indoor Noise level | 46.00 dB(A) |
| Outdoor Noise level | 56.00 dB(A) |
| Indoor unit weight （Net ) | 11 Kg |
| Outdoor unit weight (Net ) | 26.5 Kg |
| Net Dimension - Indoor (WidthxDepthxHeight) | 940x316x224 mm |
| Net Dimension - Outdoor (WidthxDepthxHeight) | 785x300x555 mm |
| Package Dimension - Indoor (WidthxDepthxHeight) | 1010x385x307 mm |
| Package Dimension - Outdoor (WidthxDepthxHeight) | 905x372x615 mm |
Split AC Installation Cost:
| Description (Wall Mounted Split AC 1-2 Ton) | Tariff (PKR) |
|---|---|
| PEL Technician Installation | 4500 |
| Dismantling Charges in case of previous AC | 2000 |
| Extra Copper Pipe (RFT) | 750 |
| PVC Drain Pipe (RFT) | 100 |
| Simple Grooving without Pipe Concealing (RFT) | 150 |
| Iron Frame Charges (Powder Coated) | 2000 |
| Filling of Holes with white Plaster of Paris (RFT) | 200 |
| PVC Duct for Refrigeration pipe (RFT) | 400 |
| Additional Gas Charging (if required) **In case of more than 10ft outdoor height |
(R-22) 350 Per RFT (R410a) 500 Per RFT |
Select Size
From $139.02
Original: $463.40
-70%PEL InverterOn Prismo T3 (H&C) Air Conditioner—
$463.40
$139.02
Description
| SPECIFICATION | 18K Prismo |
|---|---|
| Rated Capacity - Cooling | 5100 (1300-5700) W |
| Rated Capacity - Heating | 5200 (1300-5900) W |
| Rated Running Current - Cooling | 8.2 (2.3-10.5) A |
| Rated Running Current - Heating | 7.3 (2.7-9) A |
| Maximum Current | 12 A |
| Rated Power Cooling | 1660 (290-2300) W |
| Rated Power Heating |
1530 (250-1800) W |
| Maximum Input Power | 2400 W |
| Energy Efficiency Ratio (EER) | 3.07 |
| Power supply source | 220-240V~/50Hz |
| Refrigerant | R32/800 Gas |
| Air Flow Volume | 880 m3/h |
| Indoor Noise level | 46.00 dB(A) |
| Outdoor Noise level | 56.00 dB(A) |
| Indoor unit weight （Net ) | 11 Kg |
| Outdoor unit weight (Net ) | 26.5 Kg |
| Net Dimension - Indoor (WidthxDepthxHeight) | 940x316x224 mm |
| Net Dimension - Outdoor (WidthxDepthxHeight) | 785x300x555 mm |
| Package Dimension - Indoor (WidthxDepthxHeight) | 1010x385x307 mm |
| Package Dimension - Outdoor (WidthxDepthxHeight) | 905x372x615 mm |
Split AC Installation Cost:
| Description (Wall Mounted Split AC 1-2 Ton) | Tariff (PKR) |
|---|---|
| PEL Technician Installation | 4500 |
| Dismantling Charges in case of previous AC | 2000 |
| Extra Copper Pipe (RFT) | 750 |
| PVC Drain Pipe (RFT) | 100 |
| Simple Grooving without Pipe Concealing (RFT) | 150 |
| Iron Frame Charges (Powder Coated) | 2000 |
| Filling of Holes with white Plaster of Paris (RFT) | 200 |
| PVC Duct for Refrigeration pipe (RFT) | 400 |
| Additional Gas Charging (if required) **In case of more than 10ft outdoor height |
(R-22) 350 Per RFT (R410a) 500 Per RFT |
